Search & Download
Settings
By default, work directory will be the directory where insarhub-app is run, user may
specify the work directory under setting

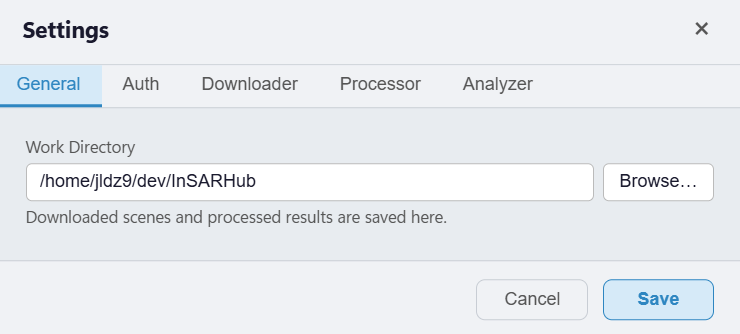

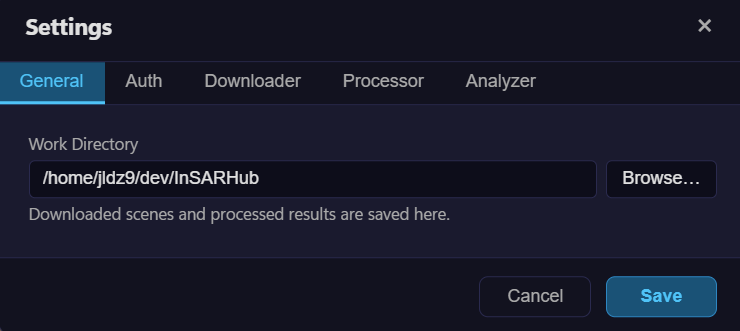

Settings panel showing work directory and API configuration.
Searching for Scenes
- Draw an AOI on the map
- Set the date range and select a downloader (default is
S1_SLC) - Click Search
Search panel showing available Sentinel-1 stacks.

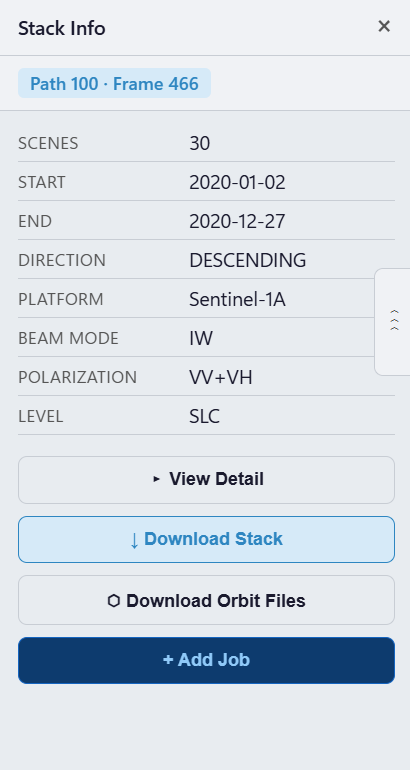

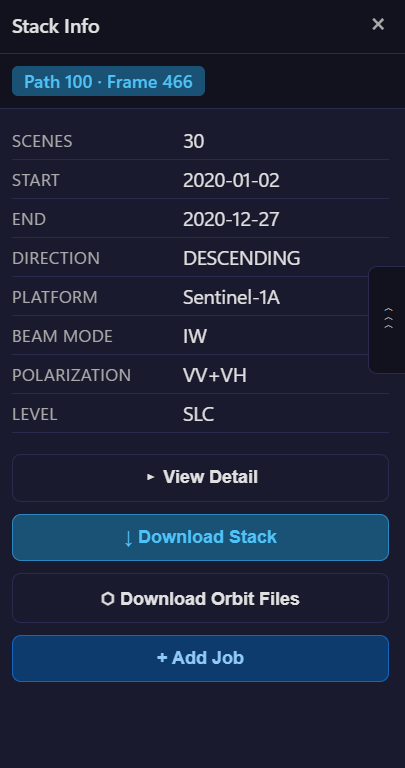

Search results appear as footprints overlaid on the map. Click any footprint to open the Scene Detail panel, which displays acquisition metadata including platform, orbit, beam mode, polarization, file size, and download options for that scene.
Click ▸ View Detail in the Scene Detail panel to expand the job drawer showing the full list of individual scenes in the stack. Click ◂ Hide Detail to collapse it.

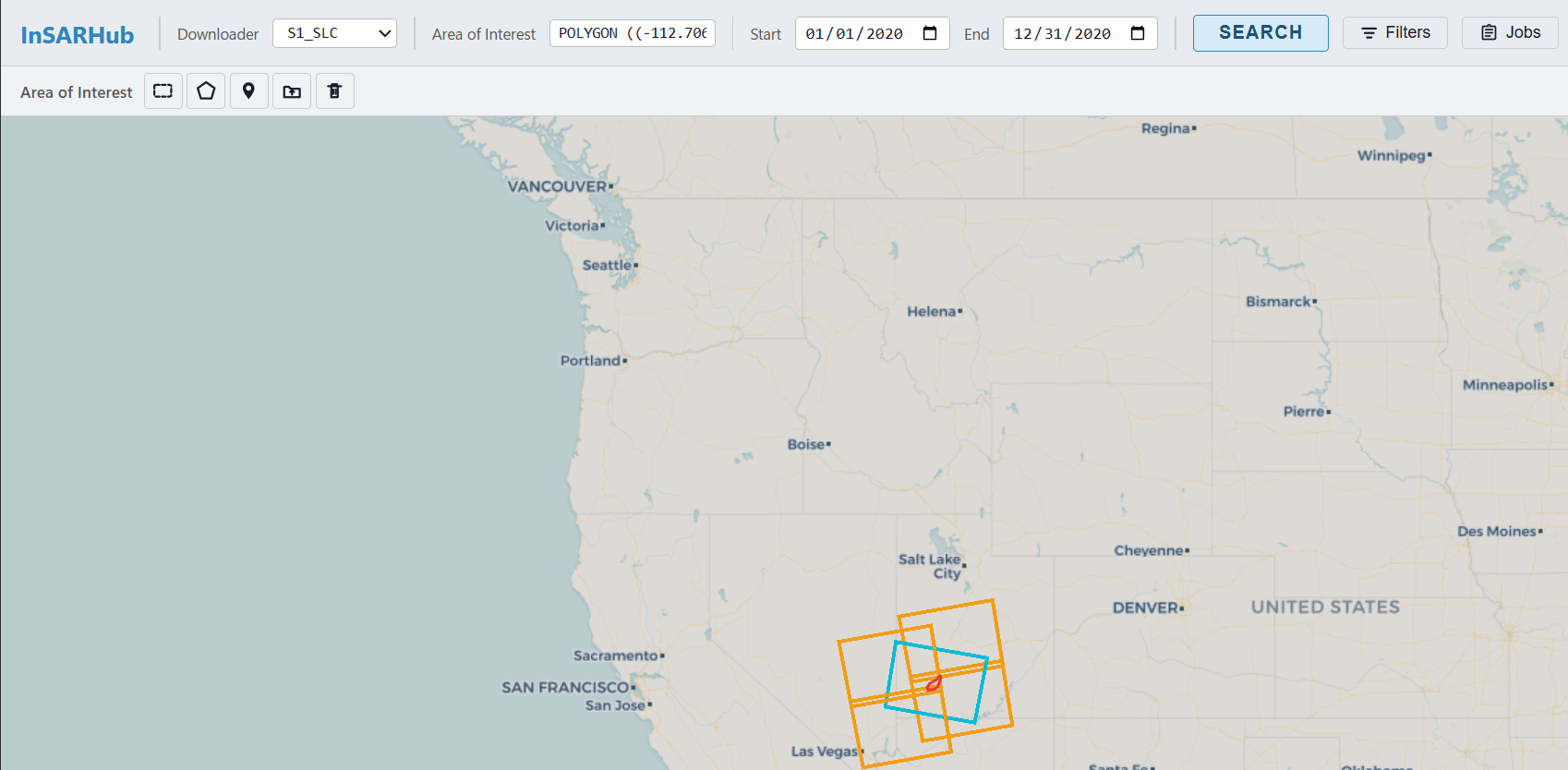

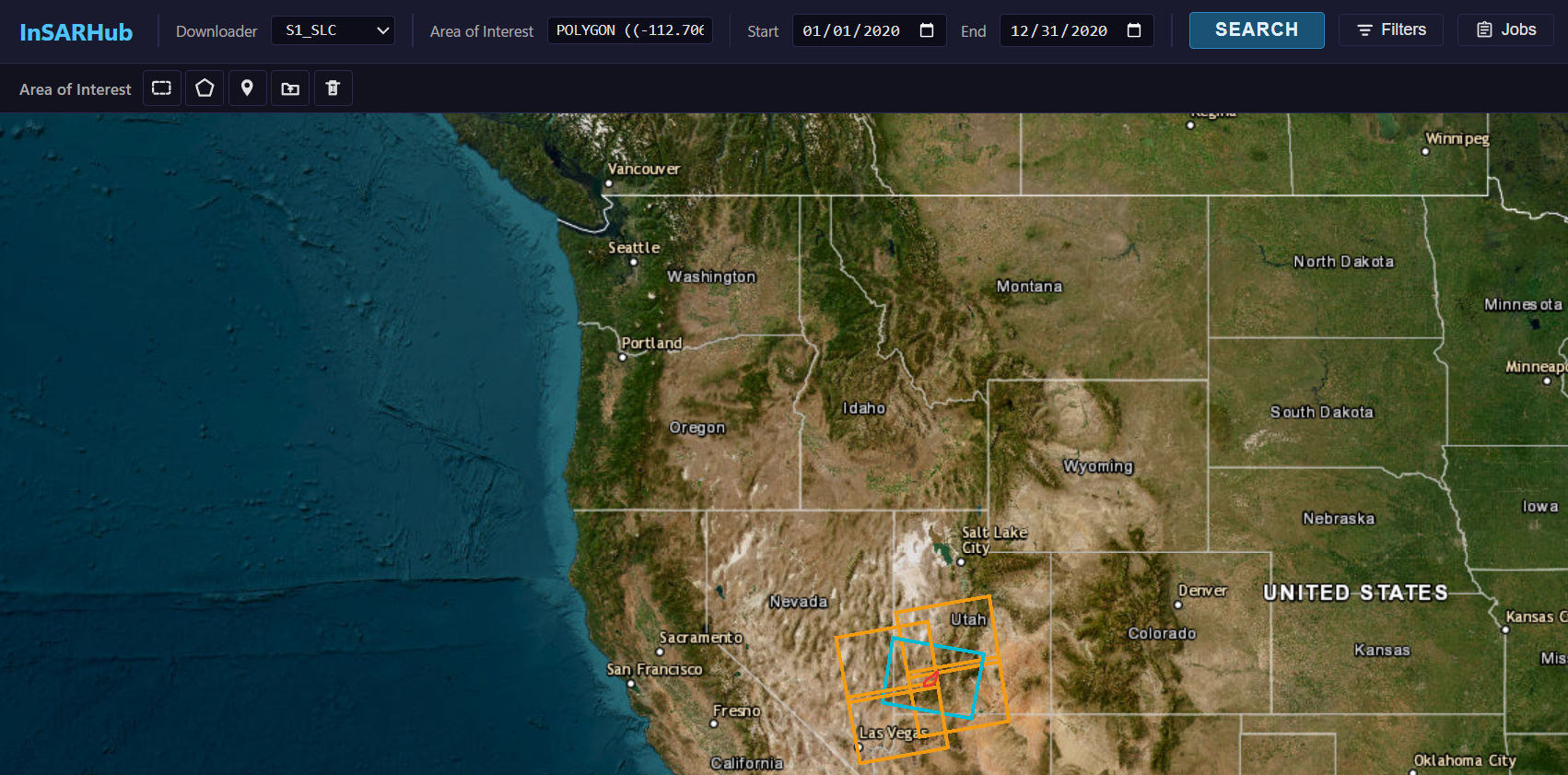

Search result footprints displayed on the map. Click a footprint to view scene details.
Downloading
Click Download Stack to start downloading scenes for the selected stack to the work directory. Progress is shown live during the download and can be stopped at any time.
For a full description of all downloader parameters and options, see the Downloader Reference.
Downloading Orbit Files
Click Download Orbit Files to download the corresponding precise orbit files for the stack. Orbit files are required for accurate InSAR processing and will be saved alongside the scene data in the work directory.
Adding a Job
Click Add Job to register the selected stack as a job in the Jobs panel. This saves the stack configuration for future downloading and processing without starting any download immediately.
Once your job is added, head to the Processor panel to select interferometric pairs and submit them for processing.
