Results Viewer

After analysis completes, InSARHub can display MintPy results directly on the map.

Loading the Velocity Map

1. Open a job folder that contains MintPy outputs (velocity.h5)
2. Open the View Results panel
3. Select a timeseries file from the list (e.g. timeseries_ERA5_ramp_demErr.h5)
4. Click Plot

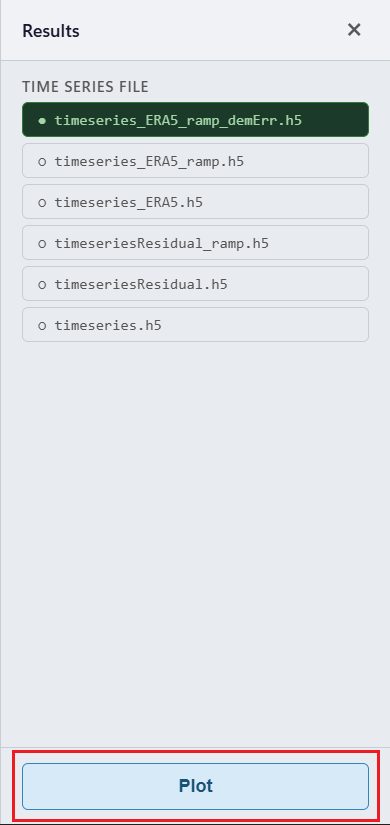

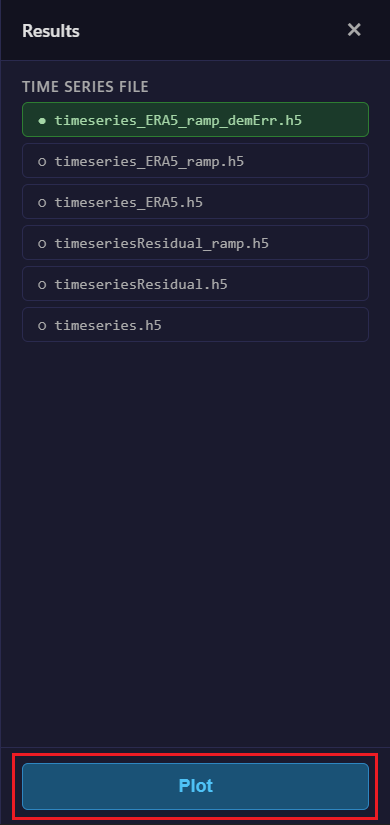

Results panel with timeseries file selected, ready to plot.

The velocity map is overlaid on the map with a ±0.1 cm/yr colorbar (red = subsidence, blue = uplift). Zero-displacement pixels are transparent.

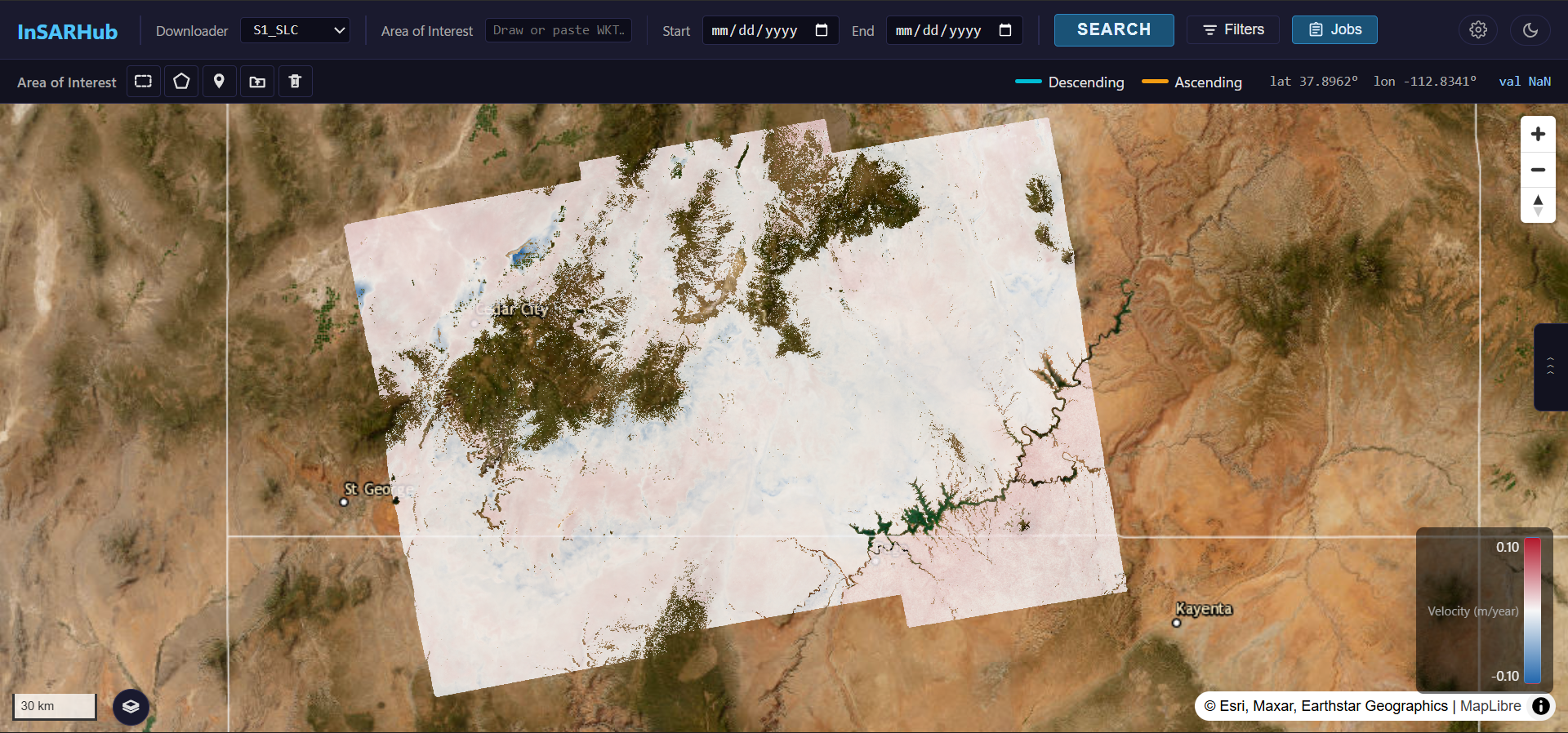

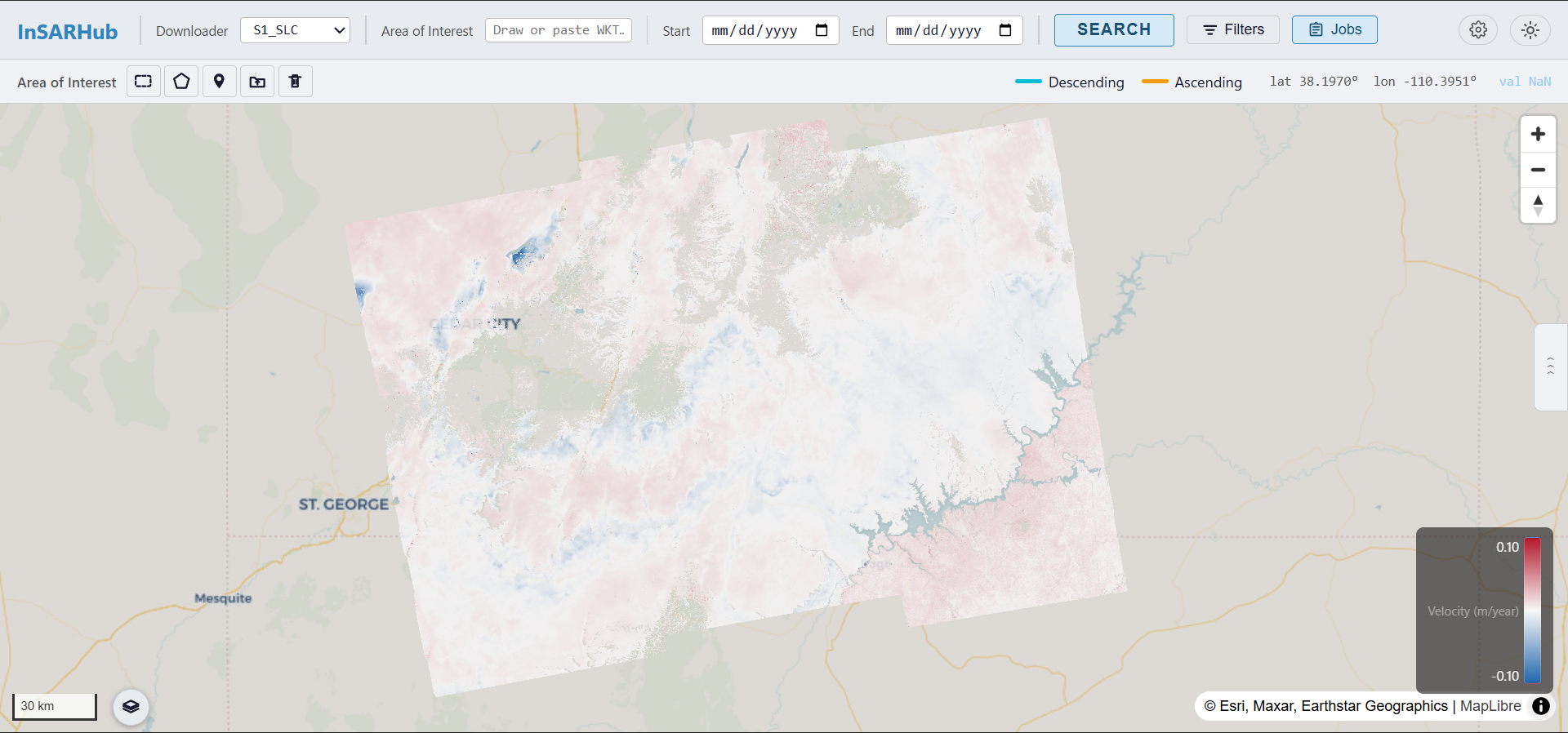

Line-of-sight velocity map overlaid on the basemap.

---

Timeseries at a Pixel

Click any pixel on the velocity map to plot the displacement timeseries at that location.

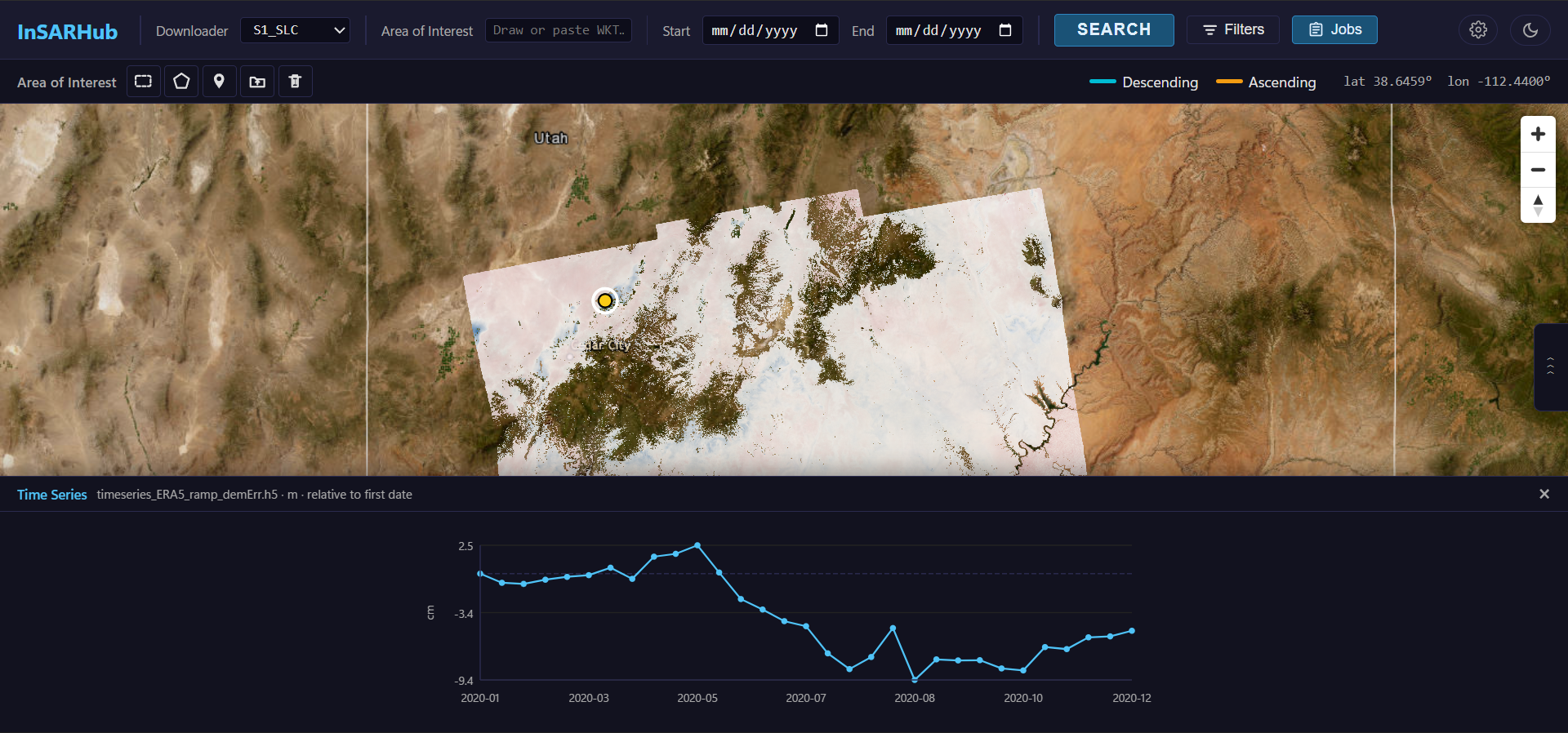

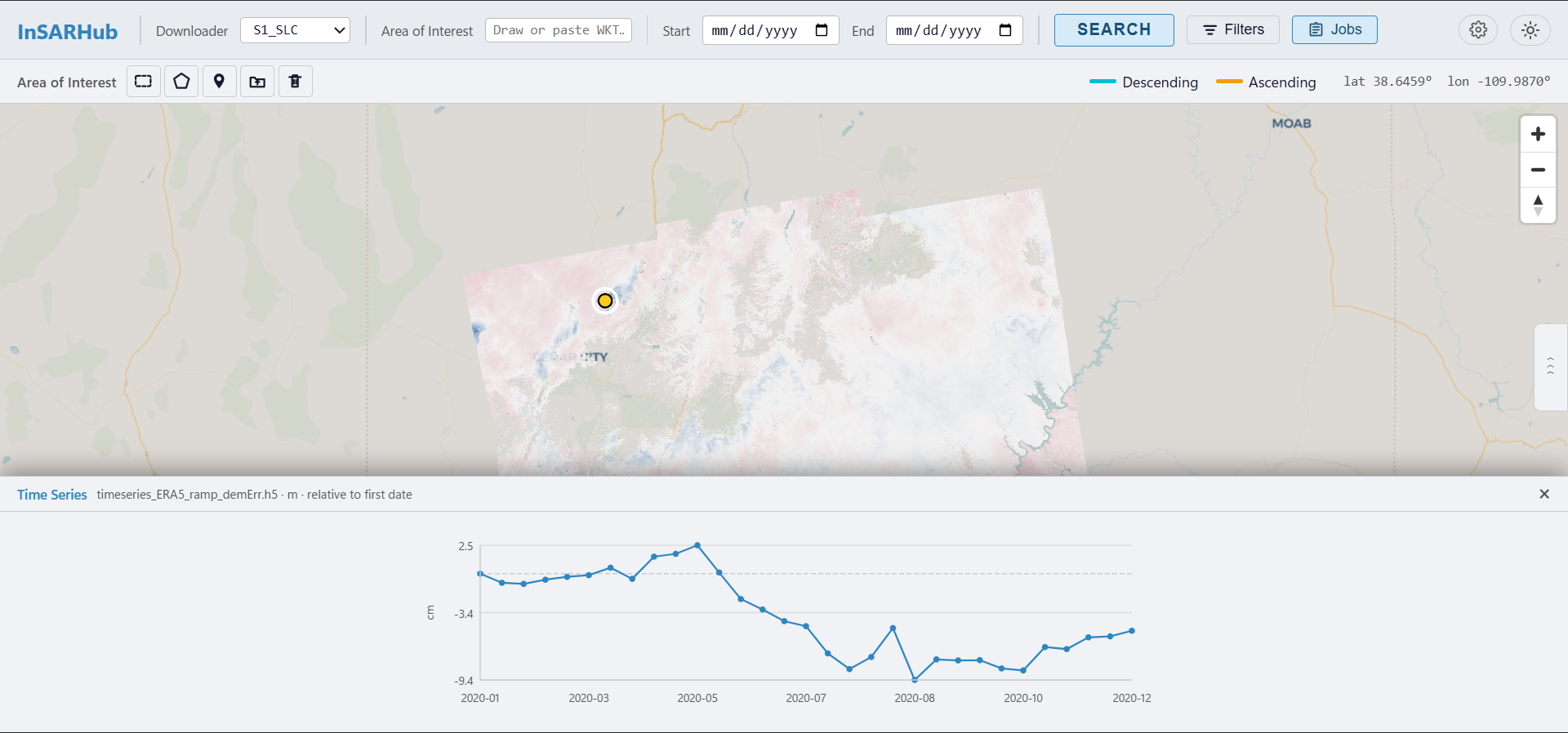

Displacement timeseries for a clicked pixel. First date is set to zero (relative displacement).

The timeseries drawer:

• Shows displacement in cm relative to the first acquisition date
• Follows the app's light/dark theme
• Can be closed by clicking the × button

---

Colorbar

The velocity colorbar spans −0.1 to +0.1 cm/yr by default:

• Red — negative velocity (subsidence / moving away from satellite)
• White — near-zero displacement
• Blue — positive velocity (uplift / moving toward satellite)
• Transparent — exactly zero (no data or reference pixels)
