Analyzer

Once the Processor has finished processing all interferograms, the Analyzer panel runs time-series analysis on the resulting products.

Initializing the Analyzer

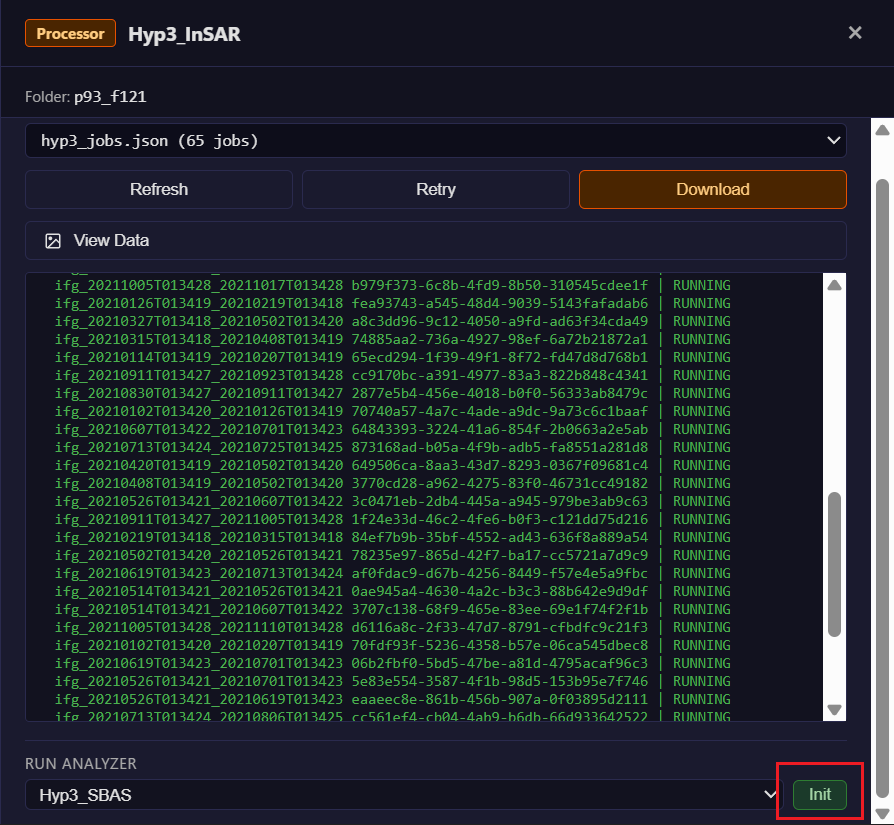

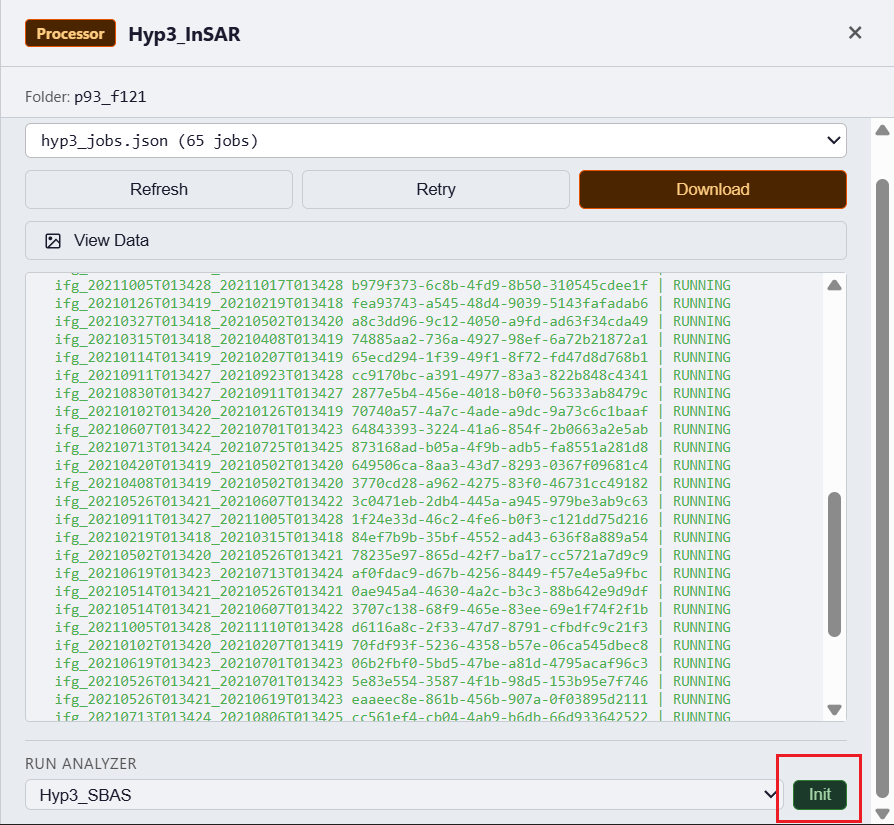

Once all submitted jobs have finished and show SUCCEEDED in the Processor panel, open the Run Analyzer tab within the same job folder. Select an analyzer type (e.g. Hyp3_SBAS) from the drop-down and click Init to initialize the analyzer workspace. This prepares the configuration and directory structure needed to run time-series analysis on the downloaded interferograms.

Analyzer Panel — The Run Analyzer tab — select an analyzer type and click Init to get started.

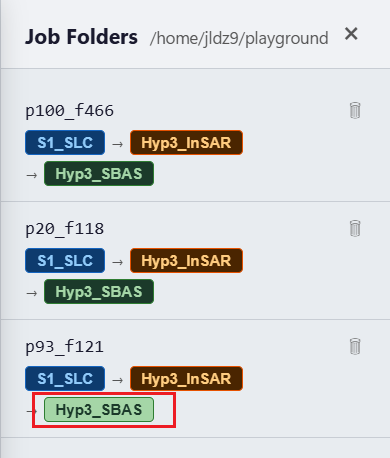

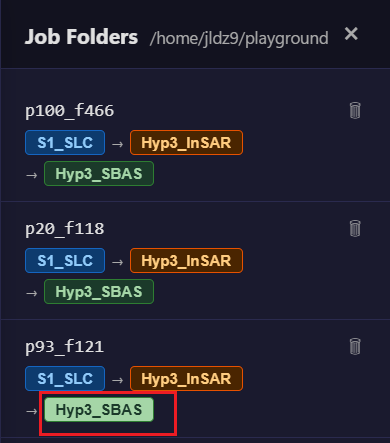

Once initialization is complete, an Analyzer tag labeled with the analyzer you chose (e.g. Hyp3_SBAS) will appear on the job folder. Click that tag to open the Analyzer panel and proceed with configuration and processing.

Configuration

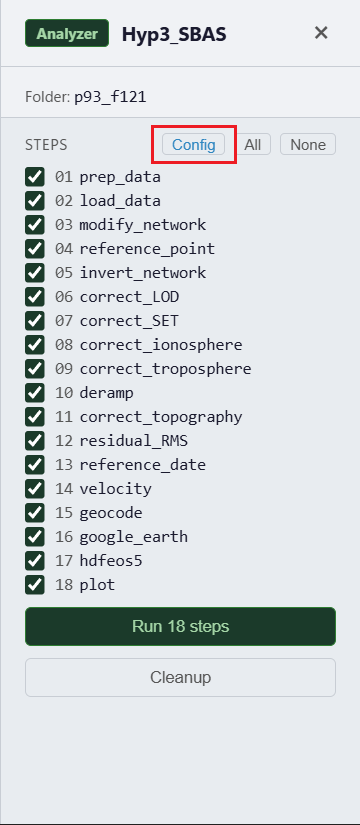

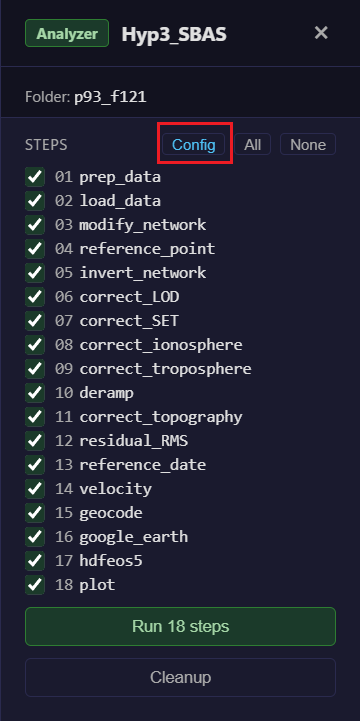

Once you enter the Analyzer panel, you can select the steps you want to run for time-series analysis. To adjust analysis parameters, click Change Config to switch to the configuration tab, where each analyzer type (e.g. Hyp3_SBAS) has its own independent settings that are saved separately.

For a full description of all analyzer parameters and options, see the Analyzer Reference.

Running Steps

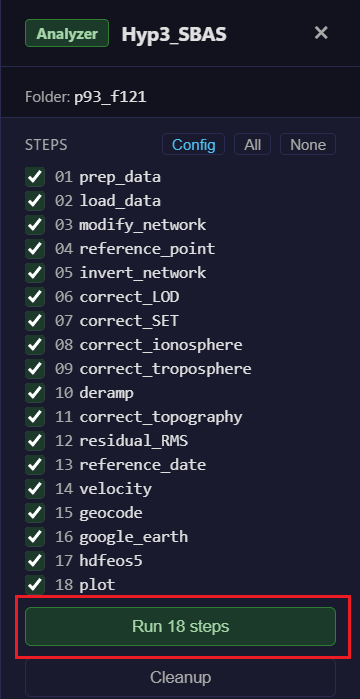

Select the steps to run and click Run. Steps run sequentially and progress is shown in the log.

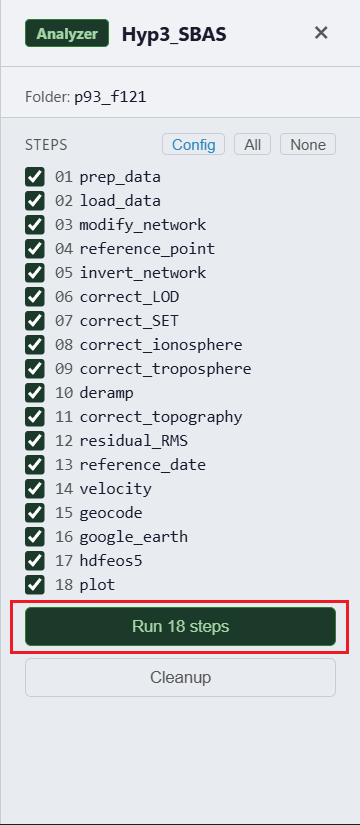

Analyzer Running — Analyzer running all steps.

Viewing Results

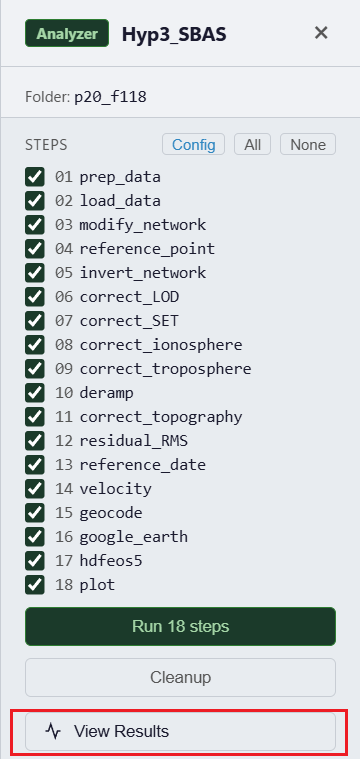

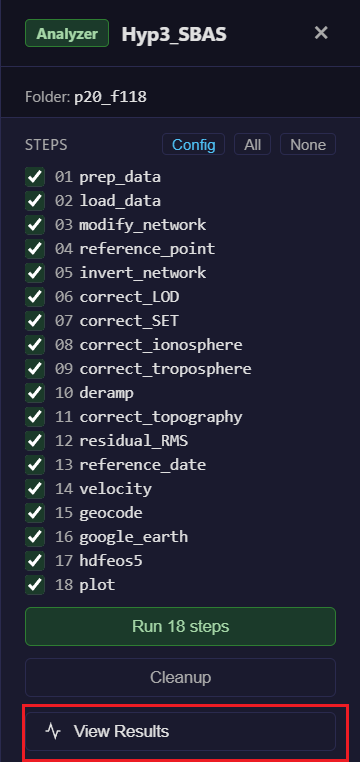

Once the velocity and geocode steps have completed successfully, a View Results button appears at the bottom of the Analyzer panel. Click it to open the Results viewer, which overlays the computed velocity map on the main map.

Click any point on the velocity overlay to extract and display the displacement time series at that location.

For more details on the Results viewer, see the Results Viewer page.

Cleanup

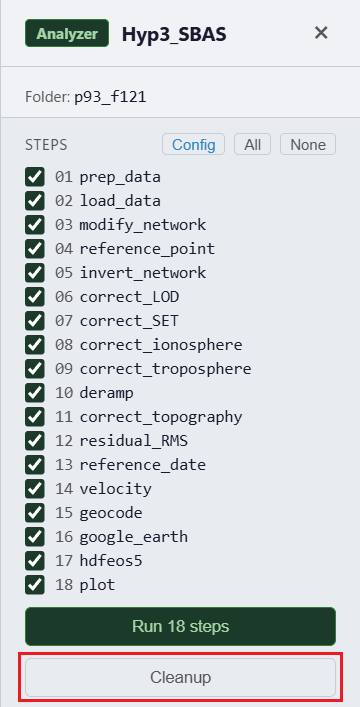

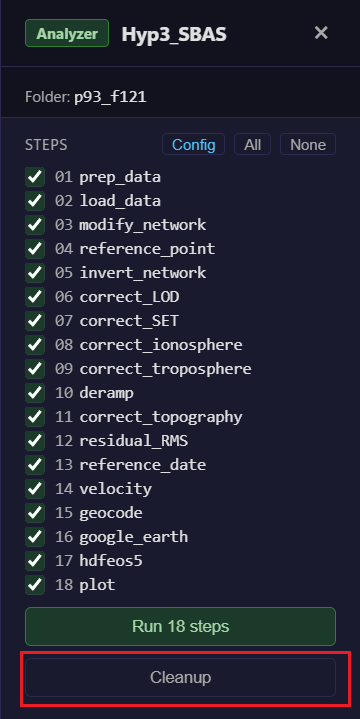

Click Cleanup to free disk space after analysis. This removes the temporary working directories (tmp/ and clip/) and any .zip archives in the job folder that were extracted during processing. MintPy outputs, and configuration files are preserved.
