This section provides an overview of the complete InSAR time-series processing workflow using Python API, guiding you through each stage of the analysis pipeline.

Modules

The InSAR script is designed with three config-based main modules to cover the entire InSAR processing workflow:

Downloader Processor Analyzer

You can click on each module to view detailed information later. For now, let's begin by running the program using the basic example.

Workflow

The basic workflow of InSARHub can be briefly described as:

graph
    A[Set AOI] --> B[Searching];
    B --> C[Result Filtering];
    C --> D[Interferogram];
    D --> F[Time-series Analysis];
    F --> H[Post-Processing];
    click A "#set-aoi" "Go to Set AOI section"
    click B "#searching" "Go to the Searching section"
    click C "#result-filtering" " Go to the Result Filtering section"
    click D "#interferogram"
    click F "#time-series-analysis"
    click H "#post-processing"

Set AOI

InSARHub allows to define the AOI using bounding box, shapefiles, or WKT:

Bounding box

AOI = [-113.05, 37.74, -112.68, 38.00]

Note

The AOI should be specified as [min_long, min_lat, max_long, max_lat] under CRS: EPSG:4326 (WGS84)

Shapefiles

AOI = 'path/to/your/shapefile.shp'

WKT

AOI = 'POLYGON((-113.05 37.74, -113.05 38.00, -112.68 38.00, -112.68 37.74, -113.05 37.74))'

Searching

Once the AOI is defined, you can perform searches using the Downloader.

from insarhub import Downloader
AOI = [-113.05, 37.74, -112.68, 38.00]
s1 = Downloader.create('S1_SLC', intersectsWith=AOI)
results = s1.search()

Output

Searching for SLCs....
-- A total of 991 results found.

The AOI crosses 18 stacks, you can use .summary() or .footprint() to check footprints and .filter(path_frame=(...)) to select the stack of scenes
you would like to download. If use .download() directly will create subfolders under /home/jldz9/dev/InSARHub for each stack

Result Filtering

Your AOI probably spans multiple scenes. To view the search result footprints, you can use:

s1.footprint()

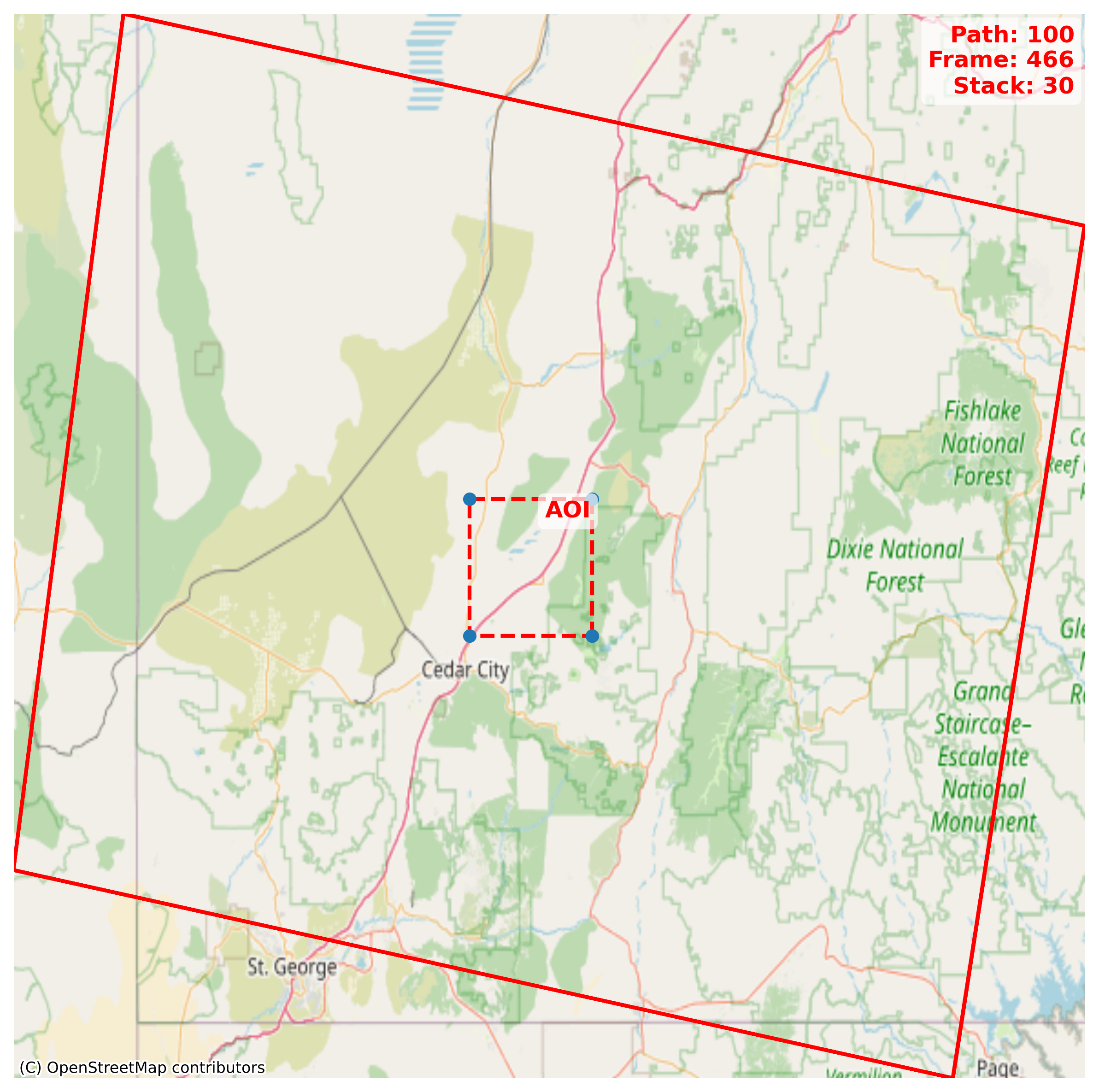

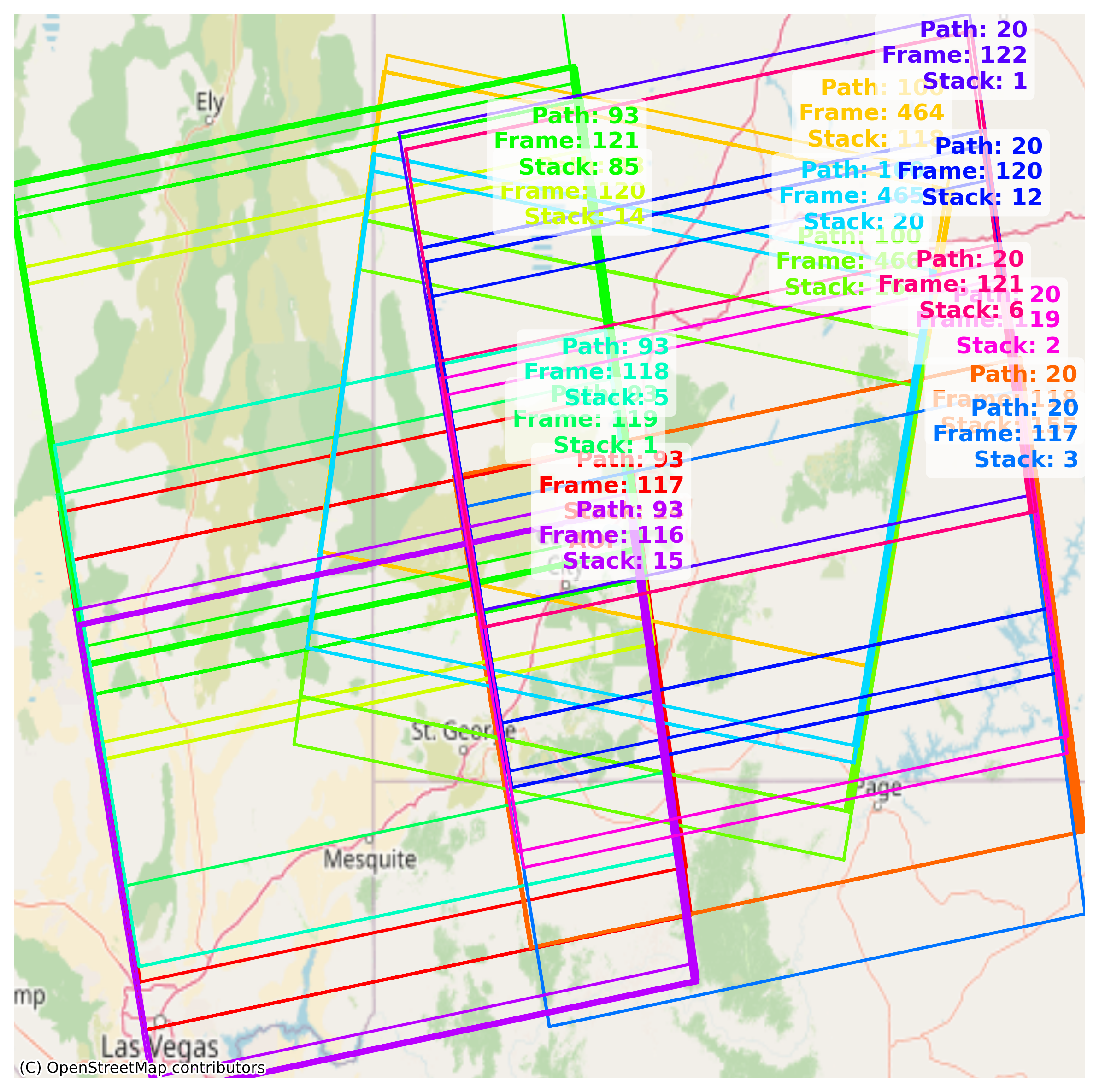

This will display a footprint map of the available Sentinel-1 scenes that covers the AOI. The stack indicates the number of SAR scenes in that footprint. Because we have multiple stacks the graph will be a bit messy:

Let's check details of our SAR scene stacks and figure out which stack(s) we want to keep:

s1.summary()

This will output the summary of available Sentinel-1 scenes that cover the AOI.

Output

=== ASCENDING ORBITS (14 Stacks) ===
relativeOrbit 20 frame 117 | Count: 10 | 2015-04-05 --> 2016-11-19
relativeOrbit 20 frame 118 | Count: 156 | 2016-12-13 --> 2026-02-24
relativeOrbit 20 frame 119 | Count: 2 | 2015-03-24 --> 2015-12-25
relativeOrbit 20 frame 120 | Count: 12 | 2014-10-31 --> 2016-09-14
relativeOrbit 20 frame 121 | Count: 6 | 2015-04-05 --> 2015-08-27
relativeOrbit 20 frame 122 | Count: 4 | 2016-05-05 --> 2016-11-19
relativeOrbit 20 frame 123 | Count: 151 | 2016-12-13 --> 2026-02-24
relativeOrbit 93 frame 116 | Count: 85 | 2014-11-05 --> 2021-12-16
relativeOrbit 93 frame 117 | Count: 25 | 2015-03-29 --> 2026-03-01
relativeOrbit 93 frame 118 | Count: 5 | 2016-10-07 --> 2017-01-11
relativeOrbit 93 frame 119 | Count: 1 | 2017-02-10 --> 2017-02-10
relativeOrbit 93 frame 120 | Count: 14 | 2015-11-12 --> 2025-07-04
relativeOrbit 93 frame 121 | Count: 85 | 2014-11-05 --> 2021-12-16
relativeOrbit 93 frame 122 | Count: 22 | 2025-05-05 --> 2026-03-01

=== DESCENDING ORBITS (4 Stacks) ===
relativeOrbit 100 frame 464 | Count: 119 | 2015-11-24 --> 2026-02-23
relativeOrbit 100 frame 465 | Count: 20 | 2014-11-29 --> 2017-01-05
relativeOrbit 100 frame 466 | Count: 161 | 2017-02-22 --> 2022-07-02
relativeOrbit 100 frame 469 | Count: 119 | 2015-11-24 --> 2026-02-23

The program identified 18 potential stacks (14 ascending, 4 descending). We can narrowed the dataset to the descending track Path 100, Frame 466 in year 2020 by:

filter_results = s1.filter(path_frame=(100,466), start='2020-01-01', end='2020-12-31')

Check back the footprint and summary:

s1.footprint()
s1.summary()

would return:

=== DESCENDING ORBITS (1 Stacks) ===
Path 100 Frame 466 | Count: 30 | 2020-01-02 --> 2020-12-27

Use download to download searched SLC data

s1.download()

Use reset to restore original search results.

s1.reset()

Interferogram

After locating SAR scene stack(s), the next step is to generate unwrapped interferograms in preparation for the time-series analysis. InSARHub currently support:

• HyP3: Use the HyP3 platform provided by ASF to run the interferometric processing in the cloud and download the resulting interferograms.

Hyp3

HyP3 is an online processing platform provided by ASF. InSARHub has wrapped hyp3_sdk as a Processor:

Hyp3 InSAR Processor takes a pair of reference_granule_id and a secondary_granule_id to generate an interferogram. To automate the pair selection process:

from insarhub.utils import select_pairs, plot_pair_network
pair_stacks, B = select_pairs(filter_results, max_degree=5) # We set the maximum connections to 5 to limit interferograms
fig = plot_pair_network(pair_stacks, B)
fig.show()

If the network is healthy without any disconnections, you are ready to submit your pairs:

To submit your pairs to Hyp3 server for online interferogram processing:

from insarhub import Processor
for (path, frame), pairs in pair_stacks.items():
    processor = Processor.create('Hyp3_InSAR', pairs=pairs, workdir=f'your/directory/p{path}_f{frame}')
    batch = processor.submit()
    processor.save()

This process will generate hyp3_jobs.json under your work directory, which contains the jobID submitted to the hyp3 server, the processing will take roughly 30 mins for 100 interferograms depends on the ASF server load

The job script will looks like:

Hyp3_jobs

{
"job_ids": {
    "Your_ASF_UserName": [
    "28a7f5e7-d8d4-4958-854f-a7e625a0a09e",
    "61d48bb8-f86d-4b2a-b933-2709b653b86b",
    "c10cc297-2008-491d-a76c-c38958830d87",
    "68b2be08-2ad7-4cad-9bbb-3d33e8468300",
    "be57c44f-9514-4b92-8e7b-9e1c9c0d9d08"
    ...
    ]
},
"out_dir": "/Your/Project/Save/Path"
}

To check the job processing status:

processor_reload = Processor.create('Hyp3_InSAR', saved_job_path='your/directory/p*_f*/hyp3_jobs.json')
batchs = processor_reload.refresh()

Output

User: jldz9asf (65 jobs)

    JOB NAME                            JOB ID                                 STATUS
- ifg_20201016T133502_20201109T133501 961b4d1c-df15-4272-843f-390c98f14f50 | SUCCEEDED
- ifg_20200829T133500_20200910T133501 a449ebf8-1dbc-4a41-a1ae-a6d30deb1fd2 | SUCCEEDED
- ifg_20200126T133452_20200207T133452 dfef59ce-9e0f-4987-a1fb-84626d58e5a5 | SUCCEEDED
- ifg_20200606T133455_20200630T133456 1864b4a9-0ae7-4c8f-94e0-eebc334b7bc3 | SUCCEEDED
- ifg_20201203T133501_20201215T133500 f1f4e7ff-0ed6-46e7-82c2-7e6ba873cdc7 | SUCCEEDED
- ifg_20200314T133452_20200407T133452 fcd2d9fe-ed0b-4f0c-93dd-d20810b3e15d | SUCCEEDED
- ifg_20201028T133501_20201121T133501 af6c695b-0cdb-475d-bda1-828723f4dd0b | SUCCEEDED
- ifg_20200102T133453_20200114T133453 93200c49-6979-482f-8701-8fe6d3f29c08 | SUCCEEDED
- ifg_20201203T133501_20201227T133500 b749ccdf-1c11-4b0d-8d9a-a962241c624e | SUCCEEDED
- ifg_20200805T133459_20200817T133459 dbc9ff2f-6d97-4981-b074-25f57838c4aa | SUCCEEDED
- ifg_20200724T133458_20200817T133459 71f2e751-3302-4504-aab9-bbcec4b9c6eb | SUCCEEDED
- ifg_20200630T133456_20200712T133457 c10a276e-c575-4162-b00e-7515ff19345c | SUCCEEDED
- ifg_20200501T133453_20200513T133454 d20fadc7-7d28-4067-ab55-f87d9a4d5063 | SUCCEEDED
- ifg_20200326T133452_20200407T133452 52985d6c-aae1-4d0e-8c49-8c6aca17dea6 | SUCCEEDED
- ifg_20200219T133452_20200314T133452 aa233b3b-5476-43c5-8af0-a1ccf0e9233f | SUCCEEDED
- ifg_20200407T133452_20200419T133453 3e476e94-e2b4-4edc-97bb-0ae07ec13e12 | SUCCEEDED
- ifg_20200630T133456_20200724T133458 7f6a56f1-b9da-4564-bc95-e5baa1352a22 | SUCCEEDED
- ifg_20200326T133452_20200501T133453 b5e9aa32-377d-4a2a-8ca1-4035bee888f4 | SUCCEEDED
- ifg_20201109T133501_20201121T133501 63593204-d6d6-4196-9a30-57b3569e75d1 | SUCCEEDED
- ifg_20201016T133502_20201028T133501 96d75b89-7198-4436-a3b9-f68e5683e6bc | SUCCEEDED
- ifg_20200102T133453_20200207T133452 a66bf72a-edf7-47bf-96e4-3bf6ccad874f | SUCCEEDED
- ifg_20200724T133458_20200805T133459 34cae102-aba2-4d4e-8191-f0f119e53a8a | SUCCEEDED
- ifg_20201004T133501_20201028T133501 ef81d0e8-45e6-4708-ab59-7658f0488200 | SUCCEEDED
- ifg_20200219T133452_20200302T133452 5a755364-2e4e-421c-b3c1-6ae46f42b1ac | SUCCEEDED
- ifg_20200102T133453_20200126T133452 ab2b13eb-0bc3-4ffa-bebb-c7d54cc7b49e | SUCCEEDED
- ifg_20201109T133501_20201215T133500 1d9cff3f-298f-4ec5-85cc-cbd95df2085a | SUCCEEDED
- ifg_20201028T133501_20201109T133501 d15552b5-420b-4fd8-99db-b0ac22bb939d | SUCCEEDED
- ifg_20201109T133501_20201203T133501 2e812368-aea3-4d90-b949-ff7292d548ff | SUCCEEDED
- ifg_20200910T133501_20201004T133501 a1e25a7a-6dbd-4d75-8672-f4dba2cf973c | SUCCEEDED
- ifg_20201004T133501_20201016T133502 41085b9b-eeee-4f69-9b1c-834789aaf09b | SUCCEEDED
- ifg_20200922T133501_20201004T133501 e312e00c-7396-4ab4-a7fe-eaf01cf398f2 | SUCCEEDED
- ifg_20200817T133459_20200829T133500 7e40a7a8-128a-4b22-a378-7b7099227845 | SUCCEEDED
- ifg_20200114T133453_20200126T133452 17720d01-9dc7-4ae8-b2b4-68b1aa2cfb5e | SUCCEEDED
- ifg_20200207T133452_20200219T133452 1760b870-9851-47d5-9d7e-eb4a6c2e3c17 | SUCCEEDED
- ifg_20200606T133455_20200712T133457 1ed432ff-ece0-451f-8b07-3e14dac2dbf3 | SUCCEEDED
- ifg_20201121T133501_20201203T133501 d522ba90-2a54-49df-a5ec-d4c47e74854e | SUCCEEDED
- ifg_20200314T133452_20200419T133453 f0d74aaf-2d0e-45c5-a598-3f59128fd3a4 | SUCCEEDED
- ifg_20200513T133454_20200606T133455 65ca5370-703f-4382-8358-58602852f4b6 | SUCCEEDED
- ifg_20200910T133501_20200922T133501 8e21d9a1-7690-4fd5-9e42-b7732556e64f | SUCCEEDED
- ifg_20200302T133452_20200314T133452 913f582b-7050-4140-912c-1bcd677ed4d0 | SUCCEEDED
- ifg_20201121T133501_20201215T133500 1b46ebd8-f934-436f-b234-6151bb419f9b | SUCCEEDED
- ifg_20200407T133452_20200501T133453 86dd0cfd-973f-4453-bd04-a880d14aa3e8 | SUCCEEDED
- ifg_20200817T133459_20200910T133501 fde1155a-15d9-484d-aead-3594baba5a5b | SUCCEEDED
- ifg_20200114T133453_20200207T133452 27c88970-ad96-4855-9fdc-55ce865df692 | SUCCEEDED
- ifg_20200513T133454_20200525T133455 5790c8ab-2186-4ac9-96d6-2015dd36c158 | SUCCEEDED
- ifg_20201121T133501_20201227T133500 4193ed07-a701-4ebf-9d54-02d635b4fb52 | SUCCEEDED
- ifg_20200712T133457_20200724T133458 2585422e-9a61-4214-a39b-6af633170074 | SUCCEEDED
- ifg_20200207T133452_20200302T133452 a8a3e128-4e32-4216-ab6e-5df810fe7b8f | SUCCEEDED
- ifg_20200419T133453_20200513T133454 f4683c12-2d35-463c-a4a7-d9d19dccd10f | SUCCEEDED
- ifg_20200805T133459_20200829T133500 2e104b8e-f58c-4a7f-8762-bc5e19c6a588 | SUCCEEDED
- ifg_20200302T133452_20200326T133452 5909b68d-e171-439a-9337-f5ea8b05bb32 | SUCCEEDED
- ifg_20200501T133453_20200525T133455 42ff579b-630b-493b-9749-20d89d7b9864 | SUCCEEDED
- ifg_20200712T133457_20200805T133459 dc8d82b9-930b-4e43-8d4e-91ceb952b5ab | SUCCEEDED
- ifg_20200525T133455_20200606T133455 863a6c29-6909-4a72-86d1-3da183f6e97a | SUCCEEDED
- ifg_20200525T133455_20200630T133456 70b7a263-3888-4780-88fc-2f3cdd176bbb | SUCCEEDED
- ifg_20200326T133452_20200419T133453 46ca5dc1-ec65-42b8-ad6c-63c860be7f61 | SUCCEEDED
- ifg_20200922T133501_20201016T133502 8ca82ac5-3a8a-4f8d-85b1-49bbe1cbbd1d | SUCCEEDED
- ifg_20200922T133501_20201028T133501 1e6bc45c-4ce2-4fb9-9179-2818196b801b | SUCCEEDED
- ifg_20201215T133500_20201227T133500 b5aae0e8-99de-4ec3-ad85-40e45a5e1b69 | SUCCEEDED
- ifg_20200114T133453_20200219T133452 5b18c065-d74b-4ee4-87a8-acce835252b1 | SUCCEEDED
- ifg_20200314T133452_20200326T133452 6c17f1e6-0b43-45fe-83cd-297d4cb64f2a | SUCCEEDED
- ifg_20200829T133500_20200922T133501 2259ce4a-d21f-4dc0-8da6-38d991086111 | SUCCEEDED
- ifg_20200302T133452_20200407T133452 5bf4a092-ad5a-48e2-9095-855b3604be9b | SUCCEEDED
- ifg_20200419T133453_20200501T133453 37c7bf39-4634-484f-a177-ae8bf314d1ba | SUCCEEDED
- ifg_20200126T133452_20200219T133452 7c5d6fb2-4bf4-44c9-adbd-777ed3e13dc3 | SUCCEEDED

Seems all interferograms are ready! (I have failed jobs?)

Processed interferograms can be downloaded by:

processor_reload.download()

Once all downloads are complete, we are ready to move to time-series analysis!

Time-series Analysis

After generated all unwrapped interferograms, time-series analysis is recommended for long term deformation monitoring. InSARHub currently support:

• Mintpy: an open-source Python package for InSAR time-series analysis.

Mintpy

InSARHub has wrapped MintPy's SmallbaselineApp as an analyzer, to connect MintPy with HyP3 products:

from insarhub import Analyzer
workdir = 'your/directory/p*_f*'
hyp3_sbas = Analyzer.create('Hyp3_SBAS', workdir=workdir)
hyp3_sbas.prep_data()
hyp3_sbas.run()

The SBAS analysis will be up and running.

Post-Processing

Normally Analyzer like Mintpy will handle postprocessing automatically.
